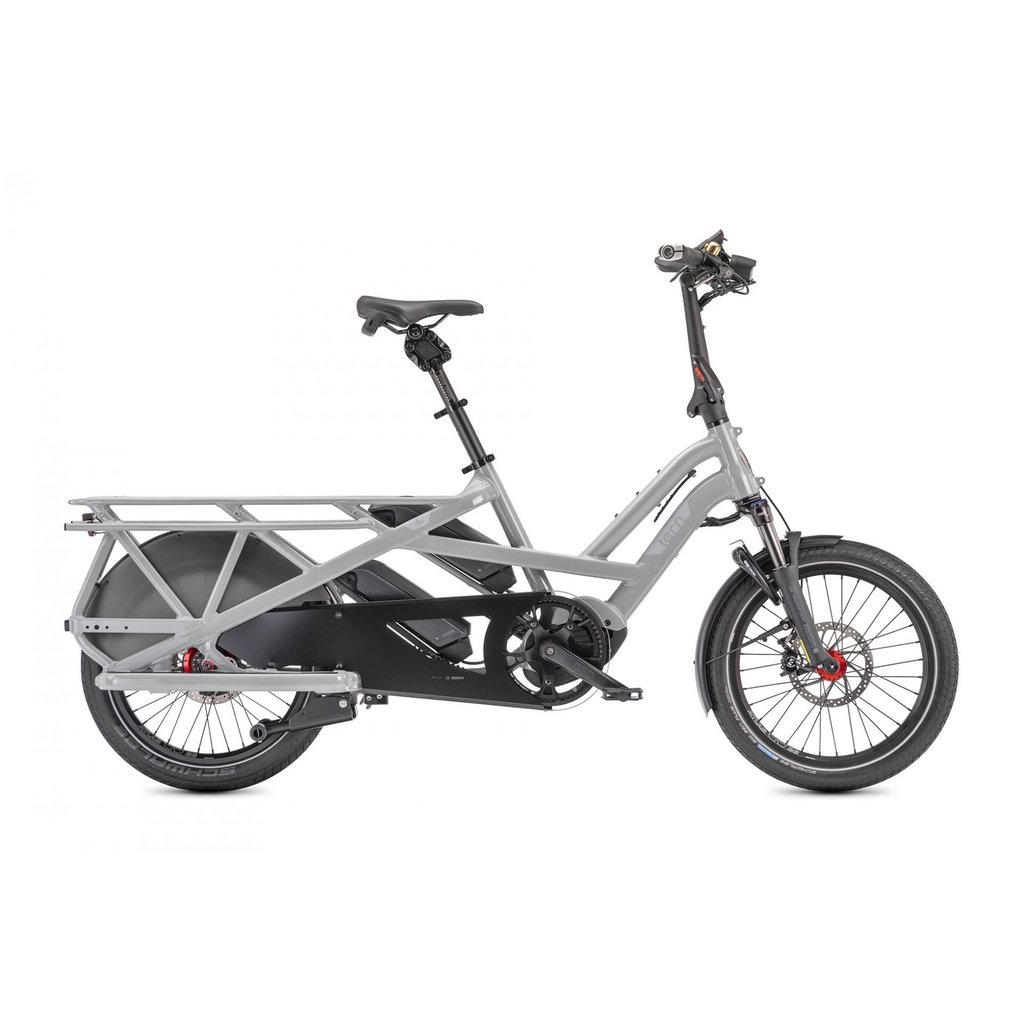

The GSD is your car replacement, with a maximum gross vehicle weight of 200kg, you'll carry two kids plus groceries or a whole lot of cargo.
The Tern GSD R14 takes the GSD to the next level with an internally geared Rohloff hub for ultimate reliability you'll be rolling for longer.
Built in dual battery technology means you can ride all day and coupled with Tern's FlatFold and Vertical Parking makes the GSD convenient to own.
The GSD has an adjustable seatpost and handlebars which mean one size fits most!
Bosch provides a cargo specific motor and battery for this GSD that provides 400% assist to help you lug your precious cargo wherever you have to go.
The upgraded ThudBuster seatpost adds comfort to your daily ride.
| Frame: | Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg |
| Fork: | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg |
| Wheels: | FRONT HUB: Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing REAR HUB: Rohloff E14, 526% range, Boost SPOKES AND NIPPLES: Stainless steel, 13G RIMS: Tern Atlas, ultra wide 36 mm, dual reinforced joint |
| Tyres: | F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex |
| Brakes: | Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads |
| Shifters: | Rohloff E14, e-shift 14 spd |
| Derailleurs: | - |
| Crankset: | Tern GSD custom, Gates CDX CNC machined beltring |
| Cassette: | Gates CDX, precision CNC machined cog |
| Bottom bracket: | Motor integrated |
| Pedals: | Urban with non-slip surface, sealed bearings |
| Handlebar: | Tern Sweep, 6061-AL, Tern Andros adapted |
| Stem: | Tern Andros, adjustable, forged construction, patented technology |
| Seatpost: | Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm |
| Saddle: | Tern GSD by Velo, with rear handle |
| Motor: | Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US) |
| Battery: | Bosch Dual Battery system, 1000 Wh |
| Display: | Bosch Intuvia, Rohloff integrated shifting w/ auto downshift |
| Lights: | FRONT LIGHT: Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam REAR LIGHT: RearStop Brake Light, Always on brake light |
| Accessories: | FENDERS: Integrated Wheel Guard, AL6061, w/ Side Skirt RACK(S): Frame integrated, heavy duty design ACCESSORY: ABUS, keyed-alike with Bosch battery KICKSTAND: Atlas Lockstand, w/ remote unlock, patented technology |
