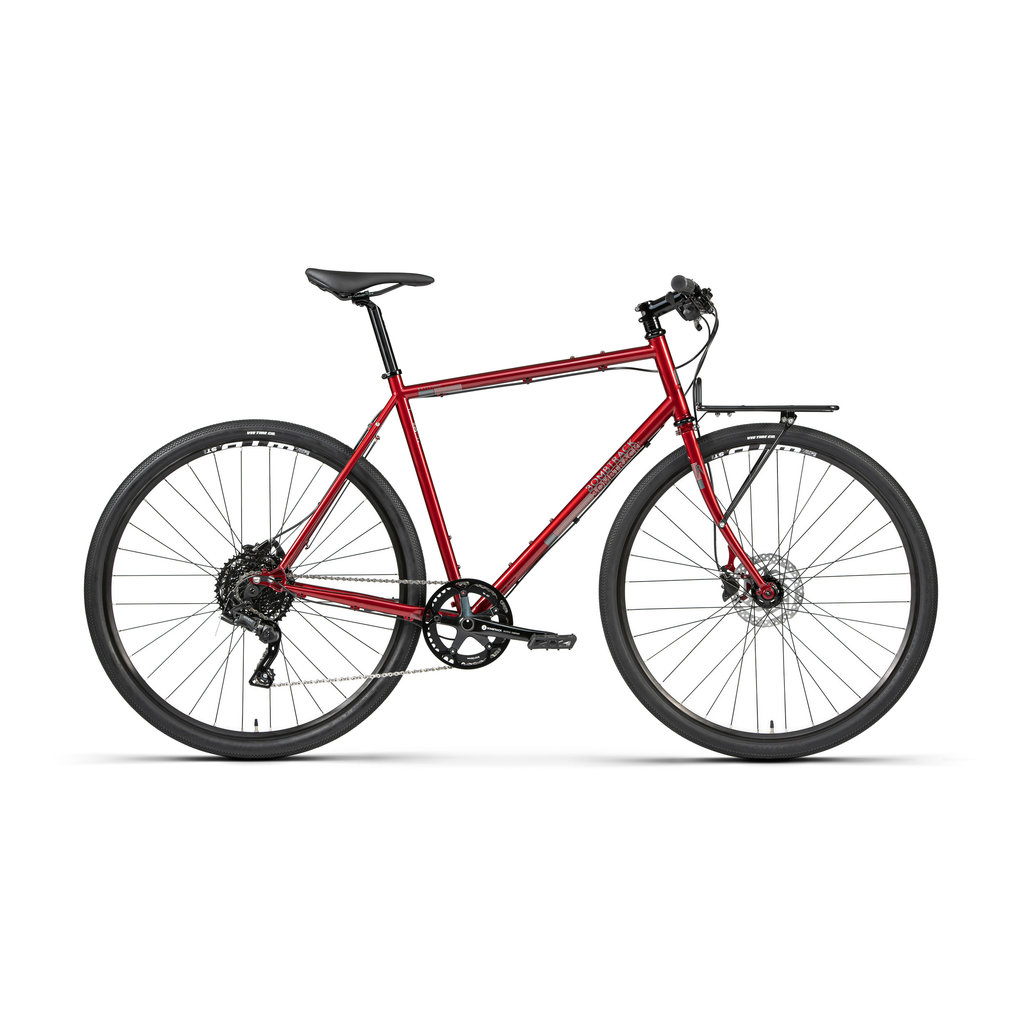

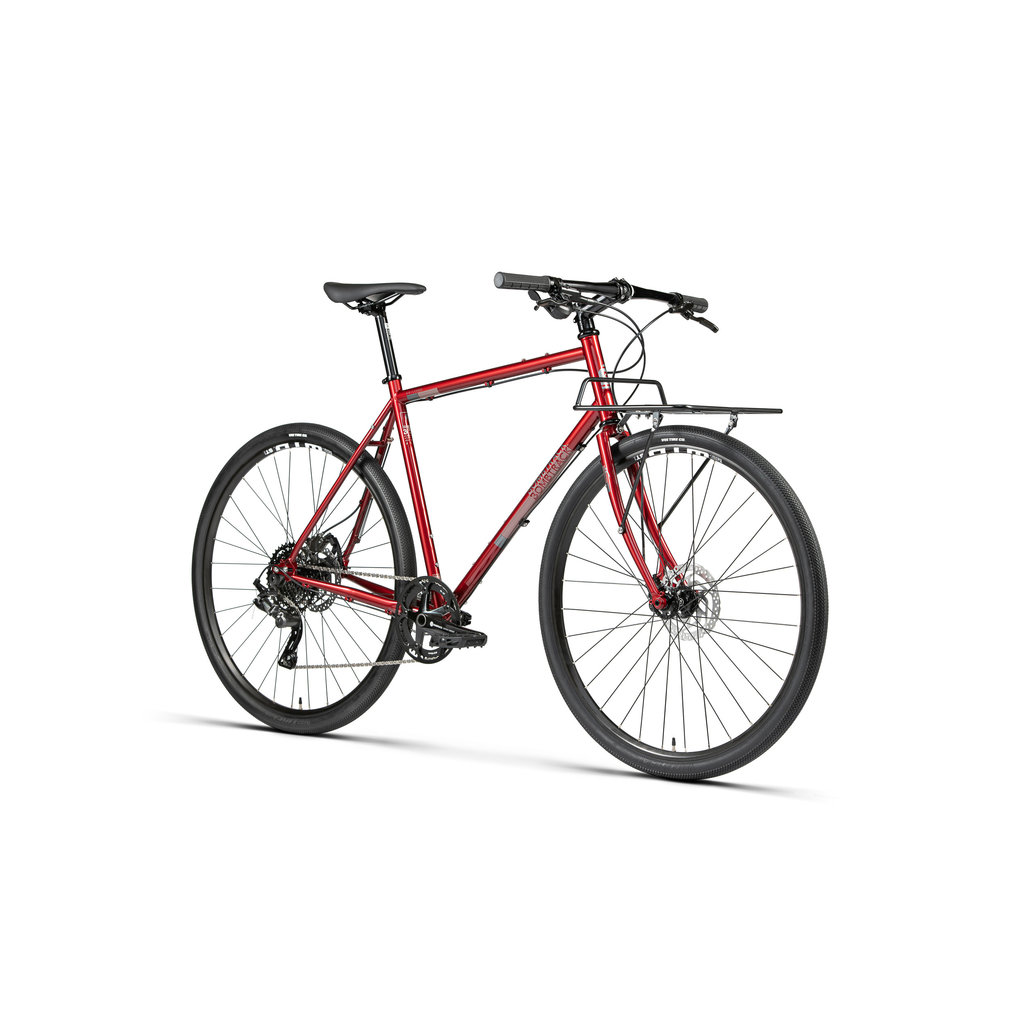

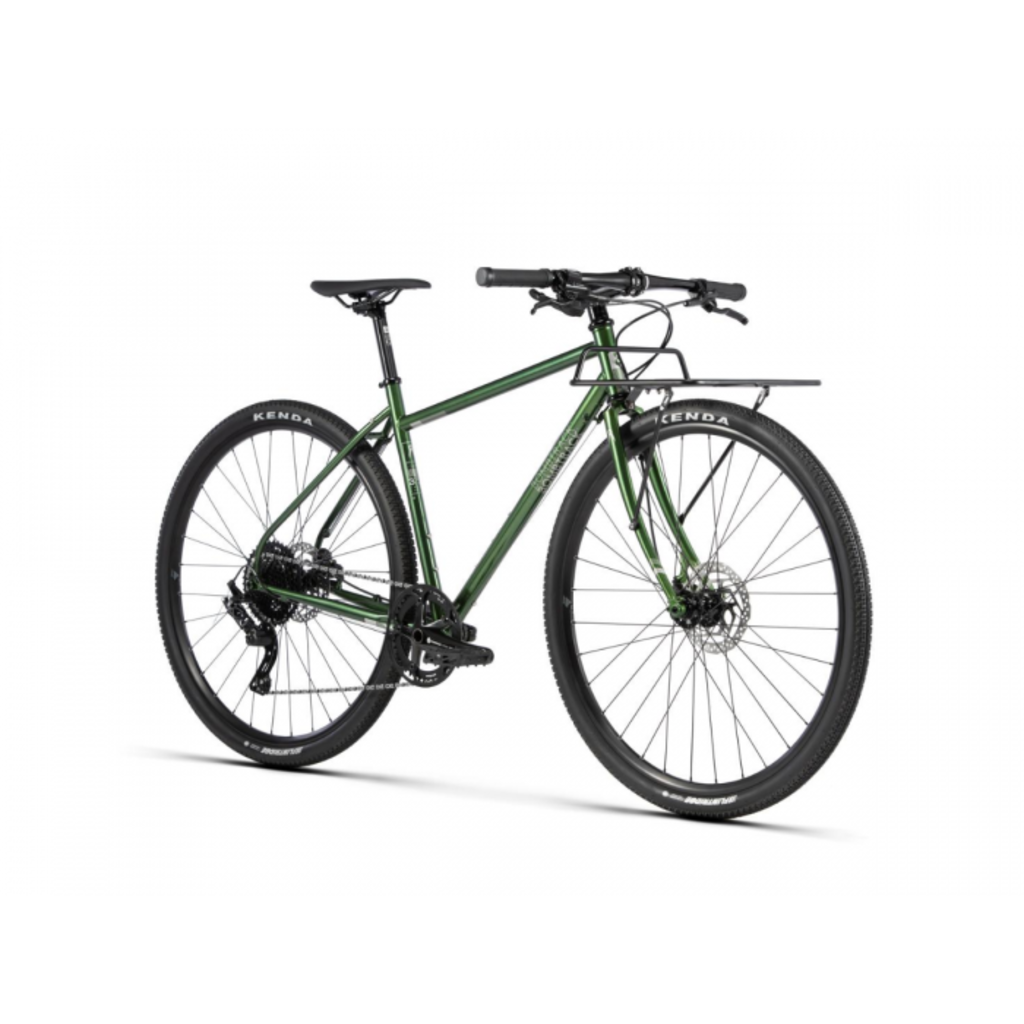

Bombtrack 2021 Arise Geared

$2,150.00
Do you want one bike to do it all? Commute cross town or cross country, pick up that pizza order. Be comfortable in the wet with full fender mounts. The Arise Geared is a crazy versatile bike with the only missing feature being you.
In stock
Free shipping On orders over $100 (excl. bulky items)

Features:

  • Size XS and S will come with 650B wheels to ensure proper fit without any compromises in geometry.
  • Double butted crmo frame with sliding dropouts and internal light cable routing.
  • Crmo fork with internal light cable routing.
  • Frame and fork with rack and fender mounts.
  • Microshift Advent clutched rear derailleur with wide range 9-speed 11 – 42 T cassette.
  • Bombtrack Deck front rack included easily carry 8 Pizzas (8kg load capacity)
  • Shimano hydraulic disc brakes with 160 mm rotors.
  • WTB ST tubeless ready rims.
  • Bombtrack ARC disc brake hubs with 12 mm through axles.



Geometry:

Bike Size XS S M L XL
Wheel size 650B 650B 700C 700C 700C
Seat Tube Length 460 490 520 550 580
Horizontal TT length 506 529 554 578 602
Seat Angle 73.5° 73.5° 73° 73° 73°
Head Angle 70° 70.5° 70.5° 71° 71°
Headtube Length 100 130 150 180 210
BB Drop 55 55 70 70 70
Chainstay Length 420 420 435 435 435
Fork Offset 55 55 55 55 55
Trail 64 60 68 65 65
Wheelbase Length 995 1016 1045 1065 1090
Standover 733 762 799 828 857
Reach 351 370 379 394 409
Stack 508 538 572 602 631
Front Center 582 602 619 639 664
Axle to Crown 390 390 390 390 390
Minimum rider height * 1500 1600 1700 1790 1880
Maximum rider height * 1610 1710 1810 1900 1990
Frame: 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell
Fork: 4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing
Headset: NECO H282 sealed external aheadset, 1.1/8''
Wheels:
Tyres:
Brakes: SHIMANO BR-MT200 post mount hydraulic disc brake with 160 mm, SHIMANO BL-M200 hydraulic brake levers rotors
Shifters: MICROSHIFT ADVENT SL-M819-R Shifter 1 x 9
Derailleurs:
Crankset: MICROSHIFT ADVENT SL-M819-R Shifter 1 x 9
Cassette:
Bottom bracket: BSA sealed BB, external cups
Pedals: WELLGO B109N flat pedal
Handlebar: BOMBTRACK ORIGIN flat bar, 31.8 mm, 8° backsweep, BOMBTRACK SCROLL grips
Stem: BOMBTRACK ROAM forged aluminium stem, -7°
Seatpost:
Saddle:
Accessories:
